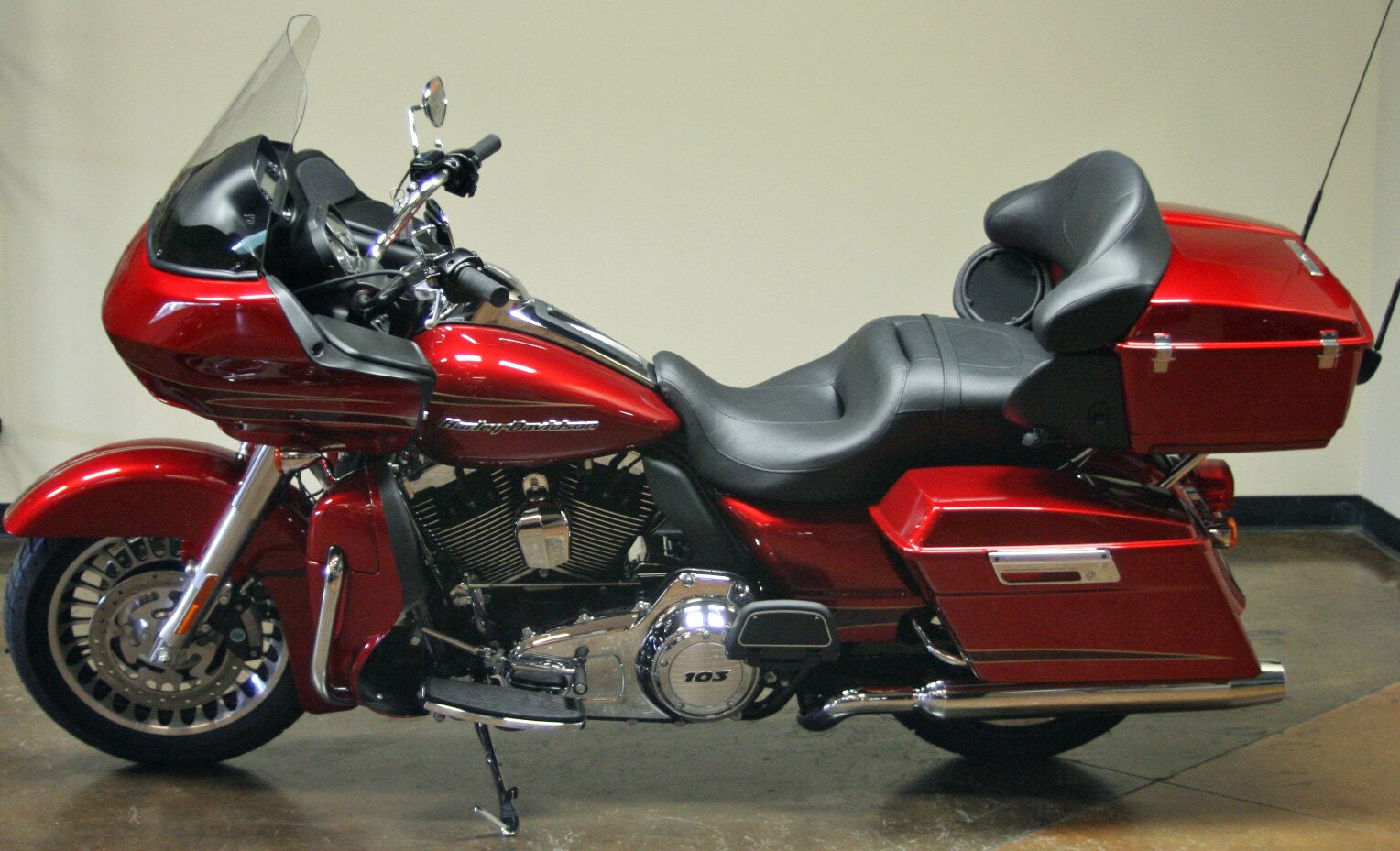

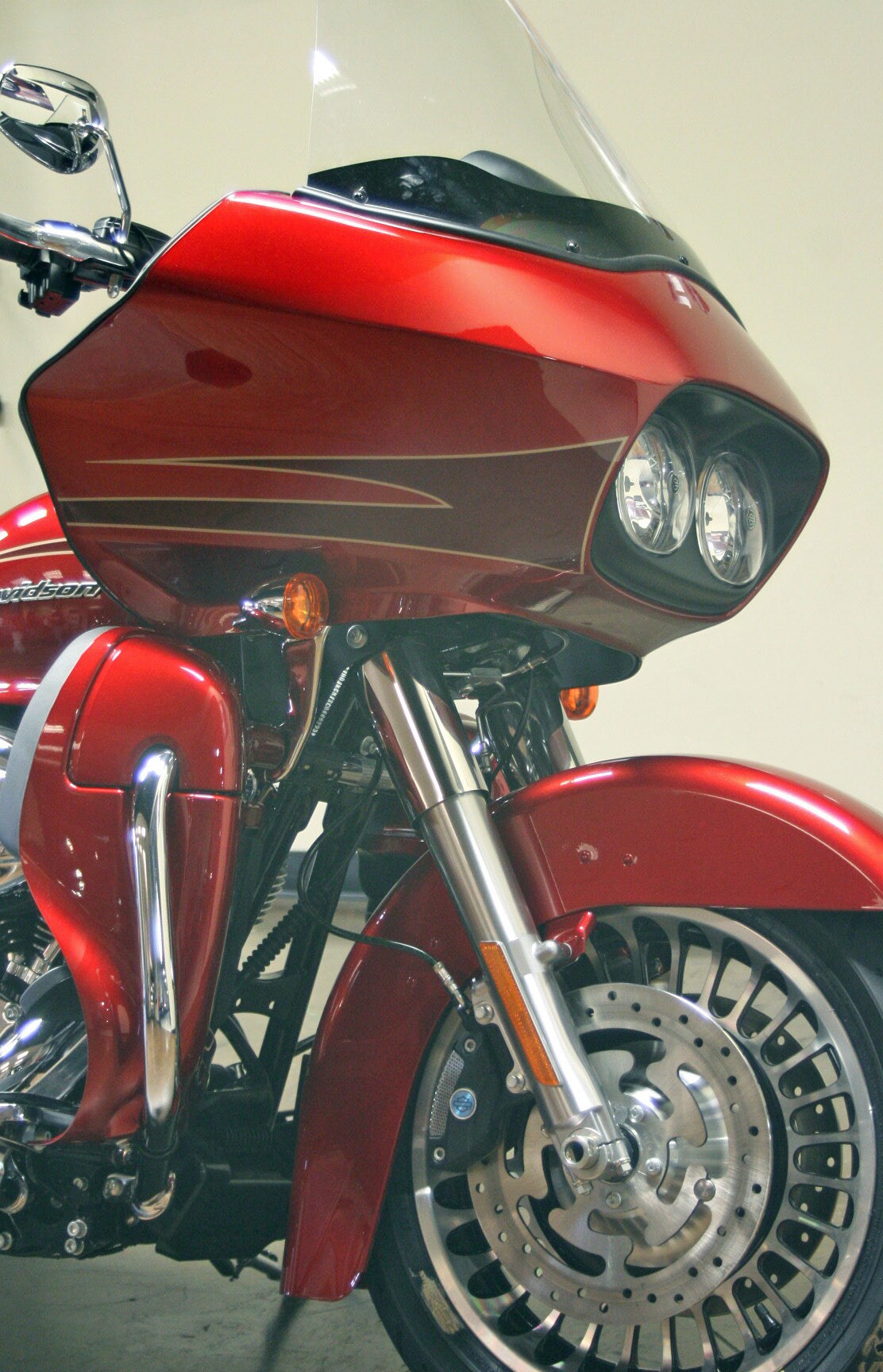

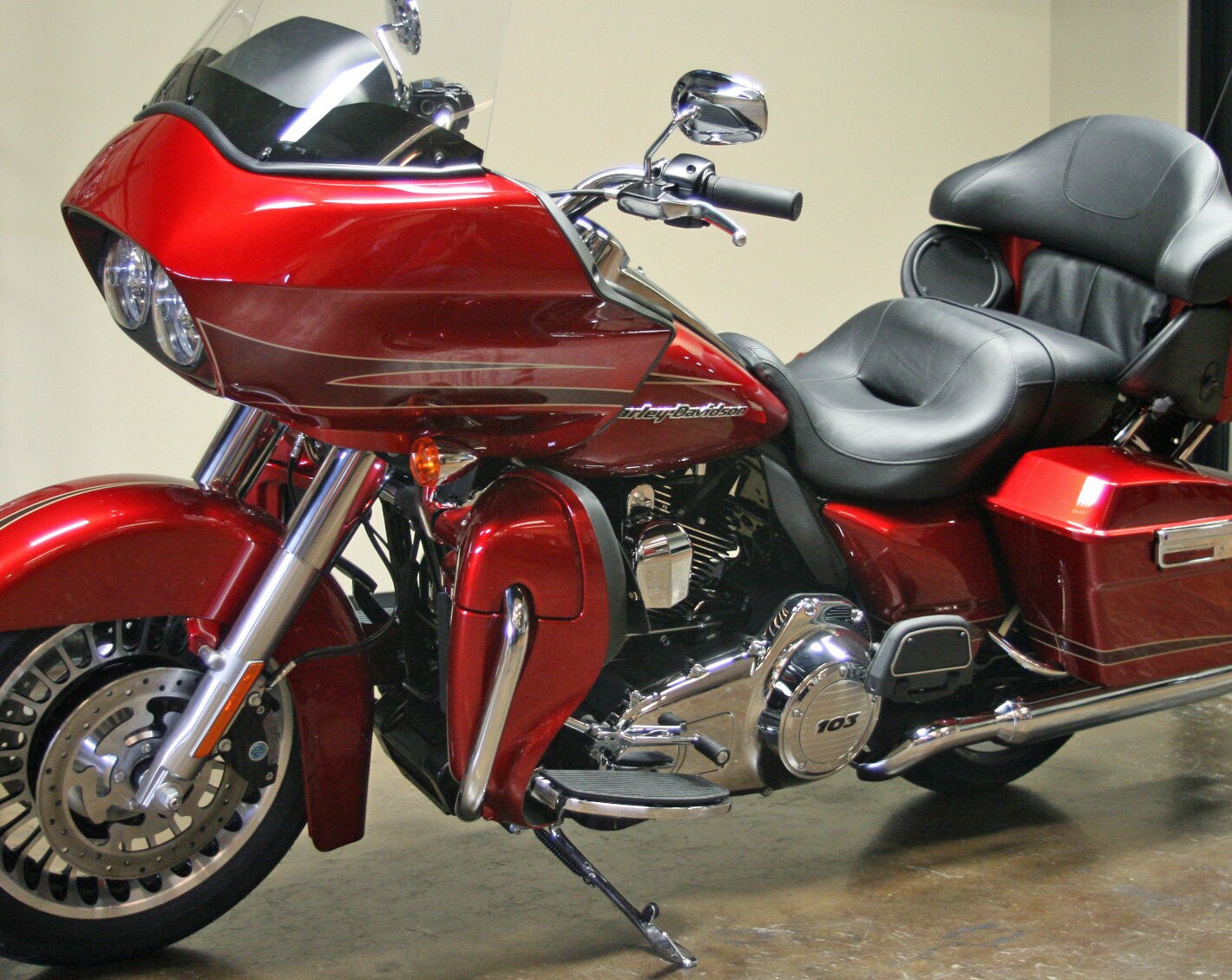

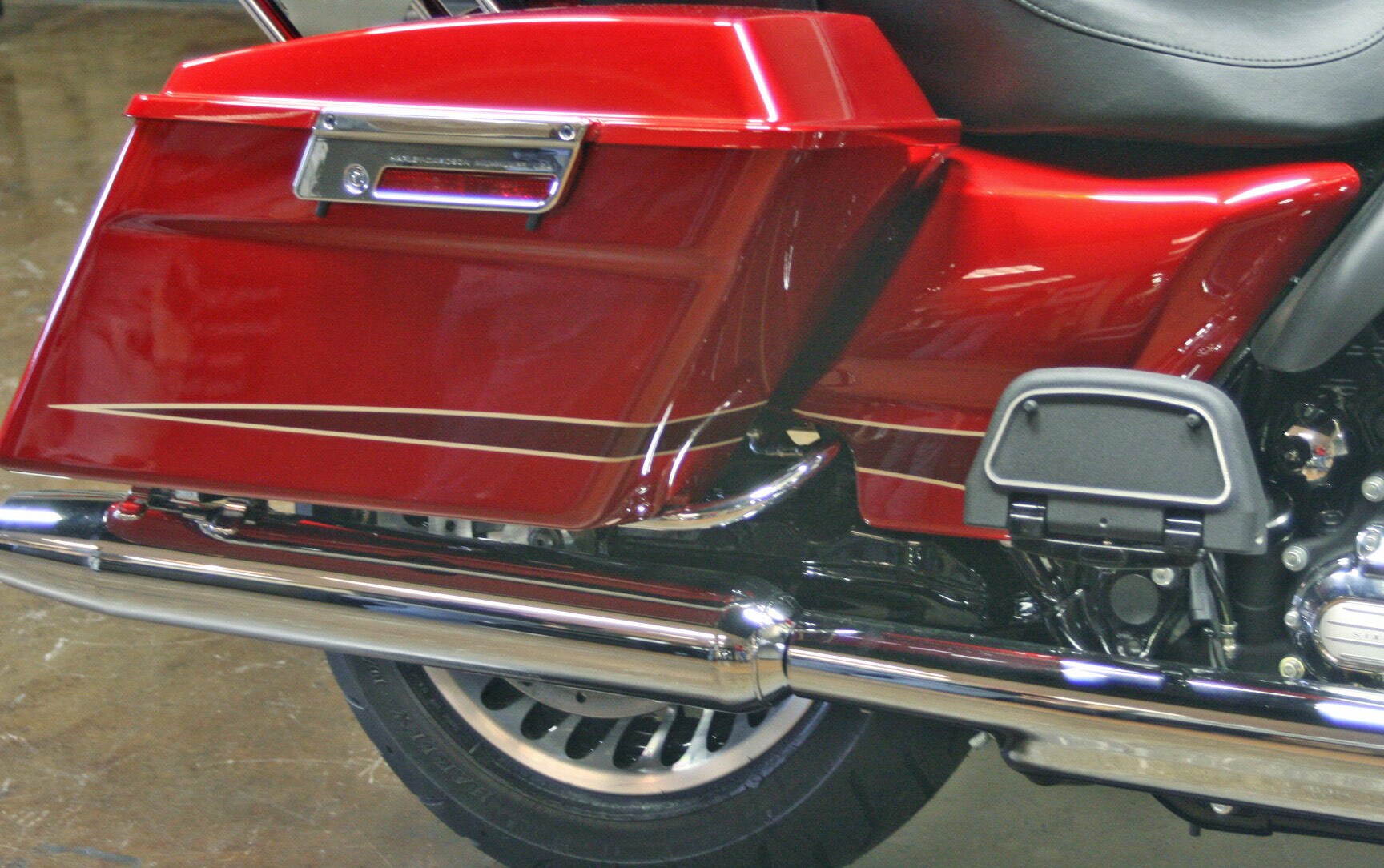

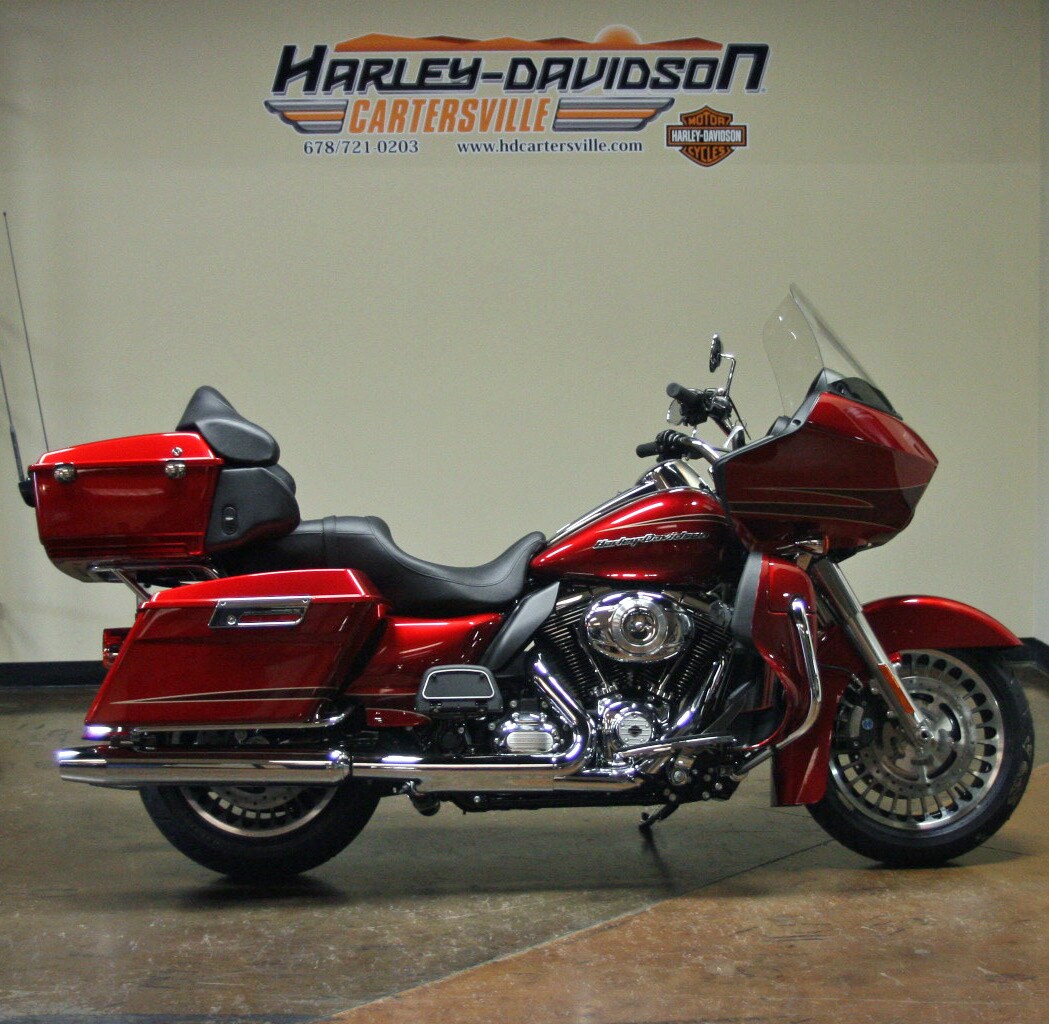

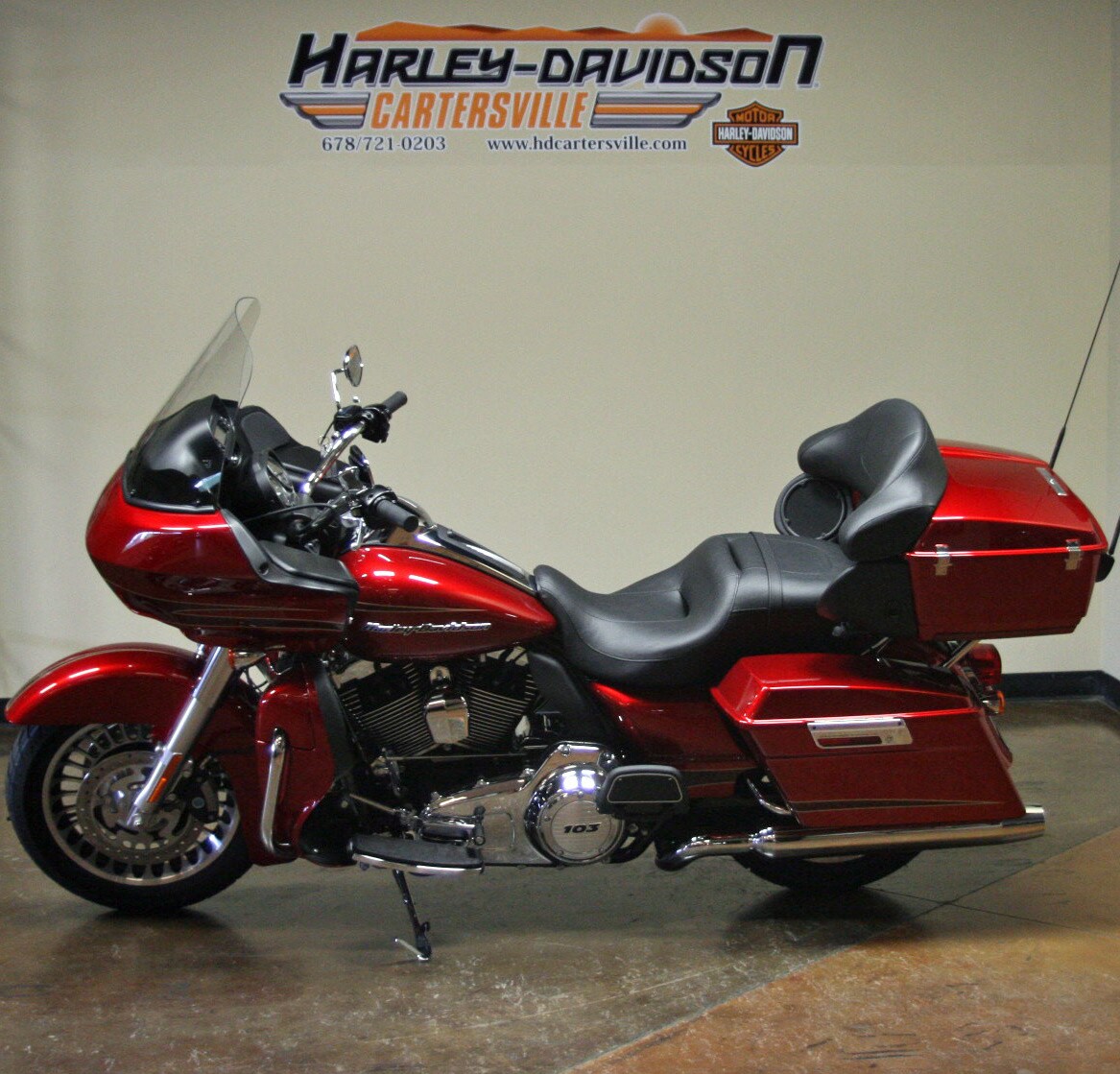

Part of the unmistakable style of the Harley-Davidson^® Road Glide^® Ultra motorcycle is plenty of room for showing off your paint. This classically styled, bold six-gallon fuel tank doesn't just give you a bigger canvas for premium or custom paint; it holds six gallons of go so you can eat up a lot more road between pit stops. We know fuel economy is important?but so is style. Sharp, eye-catching colors and crisp pinstripes that run the length of the bike from the Shark-Nose fairing to the premium GTX^® saddlebags?a one-of-a-kind look for any individual soul.

Dimensions
Length: 98.7 in.
Seat Height, Laden: 27.3 in.
Seat Height, Unladen: 29.1 in.
Ground Clearance: 5.1 in.
Rake (steering head) (deg): 26
Trail: 6.69 in.
Wheelbase: 63.5 in.
Tires, Front Specification: BW 130/80B17 65H
Tires, Rear Specification: BW 180/65B16 81H
Fuel Capacity: 6 gal.
Oil Capacity: (w/filter): 4 qt.
Weight, As Shipped: 850 lb.
Weight, In Running Order: 888 lb.

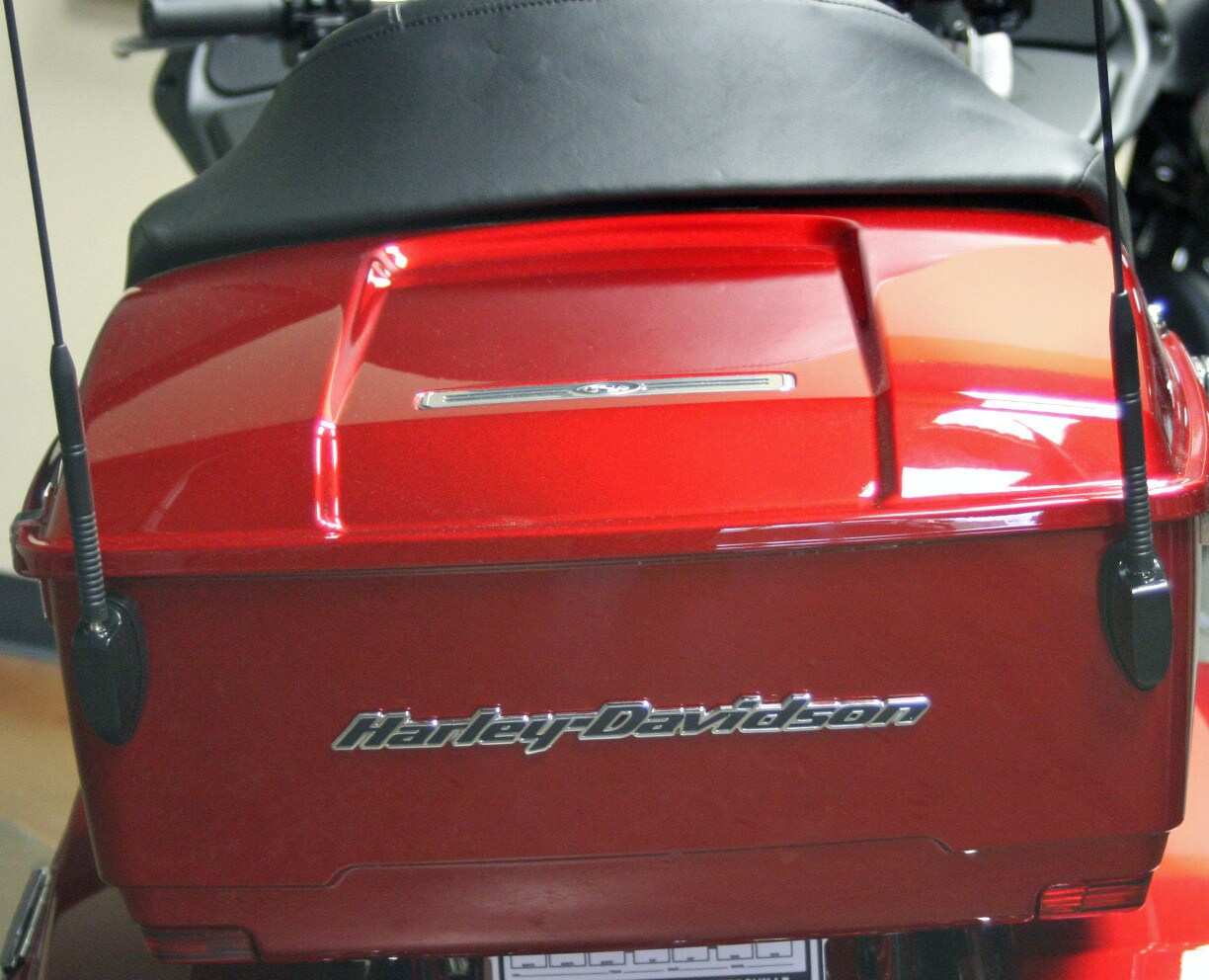

Luggage Capacity -Volume: 4.52 cu ft
Luggage Capacity -Weight: N/A

Engine

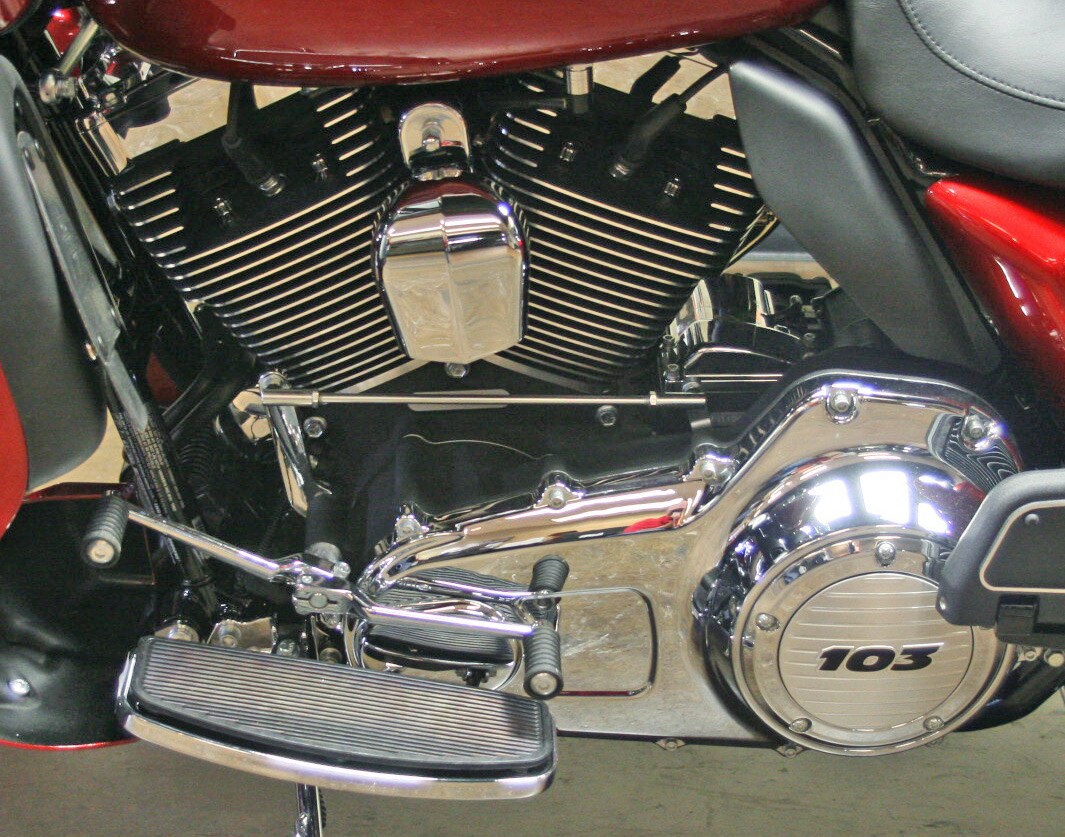

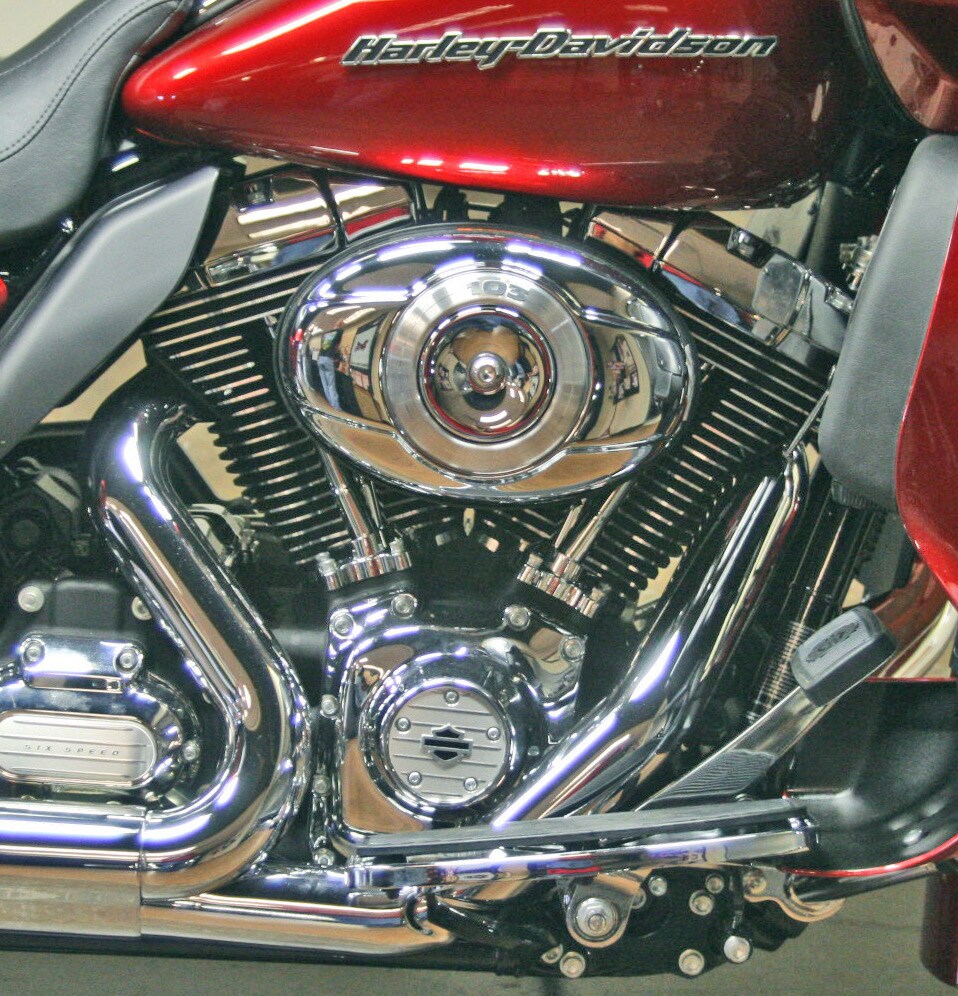

Engine: Air-cooled Twin Cam 103? with Integrated Oil-Cooler
Bore: 3.875 in.
Stroke: 4.38 in.
Displacement: 103 cu in
Compression Ratio: 9.6:1
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain
Primary DriveChain, 34/46 ratio
Gear Ratios (overall) 1^st: 9.593
Gear Ratios (overall) 2^nd: 6.65
Gear Ratios (overall) 3^rd: 4.938
Gear Ratios (overall) 4^th:4
Gear Ratios (overall) 5^th: 3.407
Gear Ratios (overall) 6^th: 2.875

Chassis

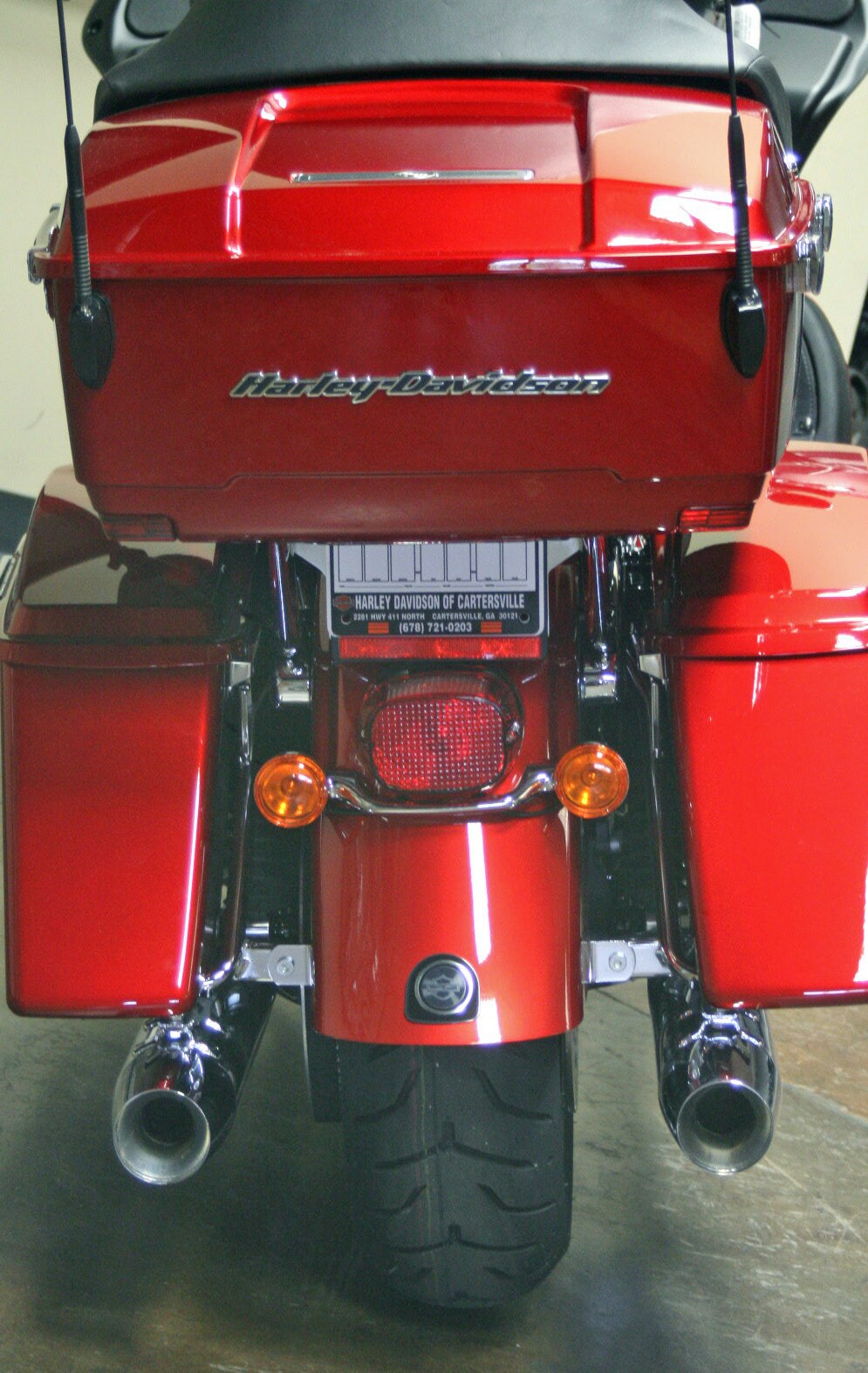

ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
Wheels, Optional Style Type: Tubeless Chrome Aluminum Profile Laced

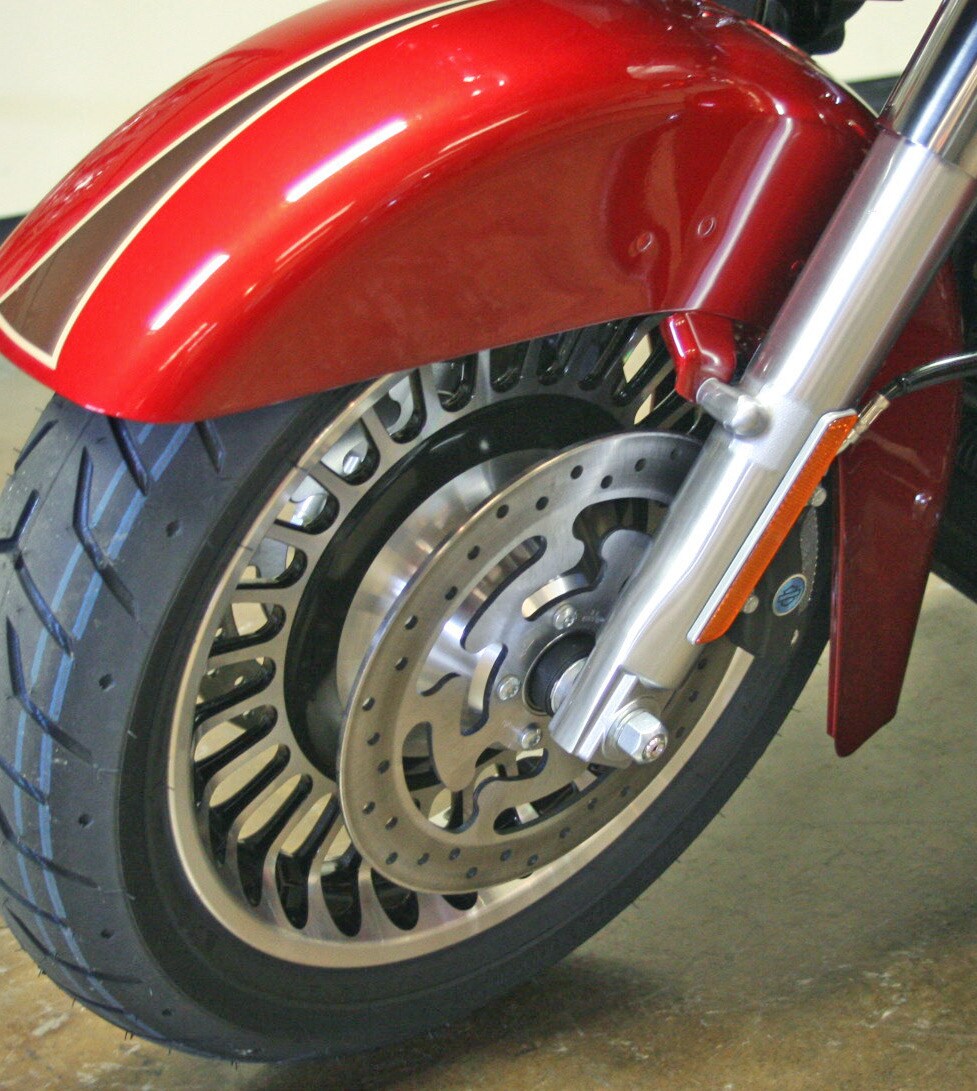

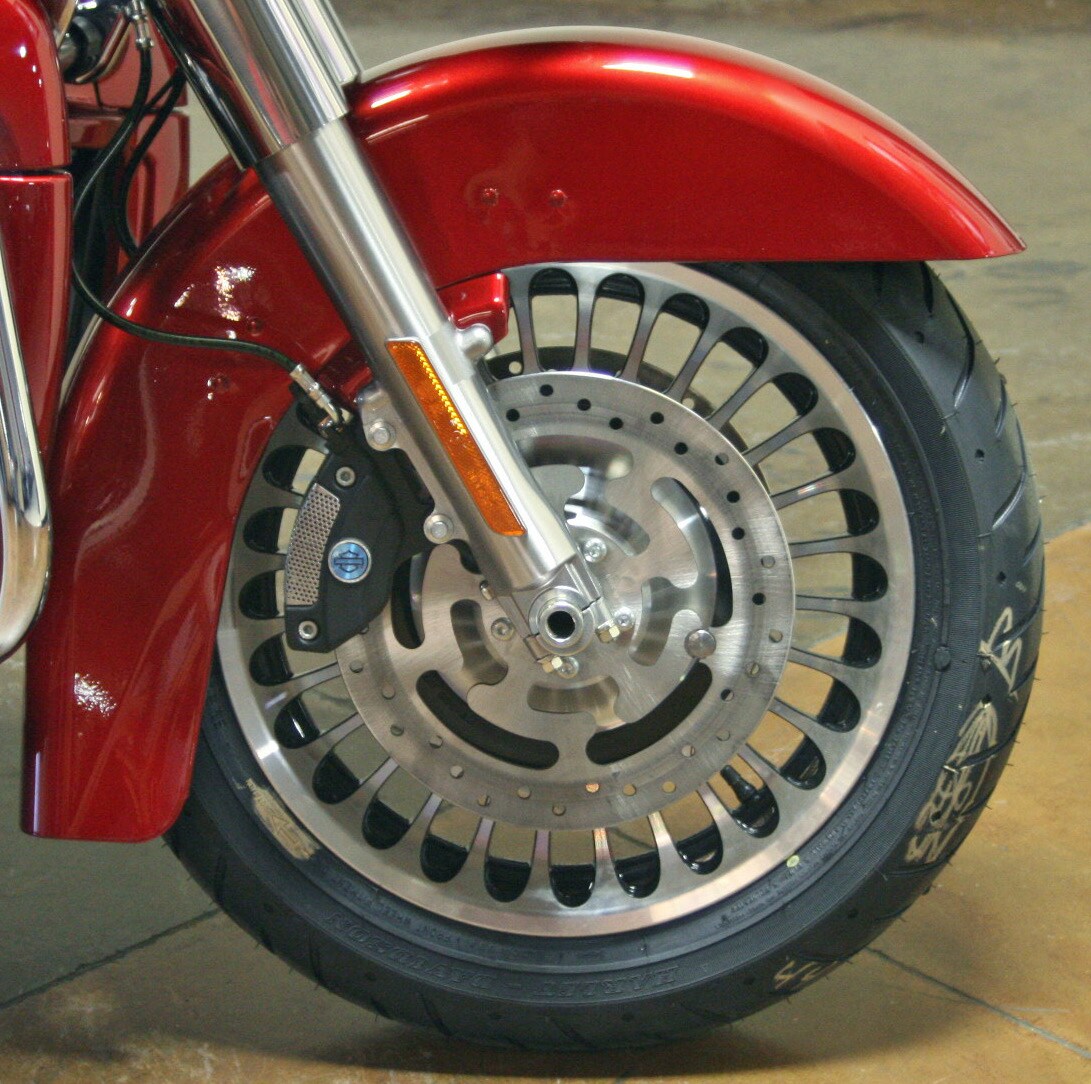

Wheels, Front Type: Black, 28-spoke Cast Aluminum
Wheels, Rear Type: Black, 28-spoke Cast Aluminum
Brakes, Caliper Type32 mm, 4-piston fixed front and rear
Parking Brake: N/A

Performance
Engine Torque Testing Method: J1349
Engine Torque: 100 ft-lb
Engine Torque (rpm): 3,250
Lean Angle, Right (deg.): 33
Lean Angle, Left (deg.): 31
Fuel Economy: Combined City/Hwy: 42 mpg

Electric
Lights: (as per country regulation), Indicator Lamps High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warning, cruise control, ABS

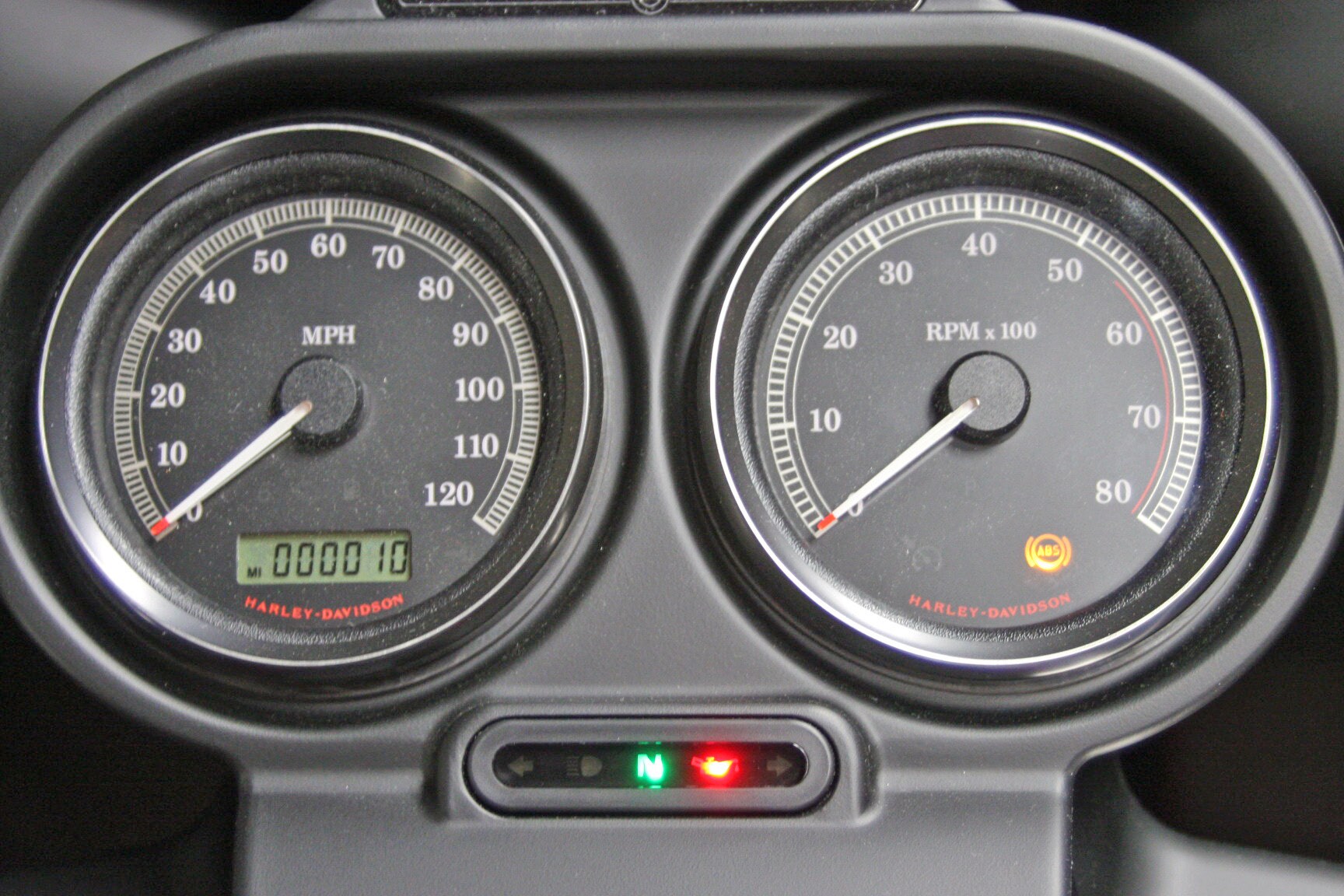

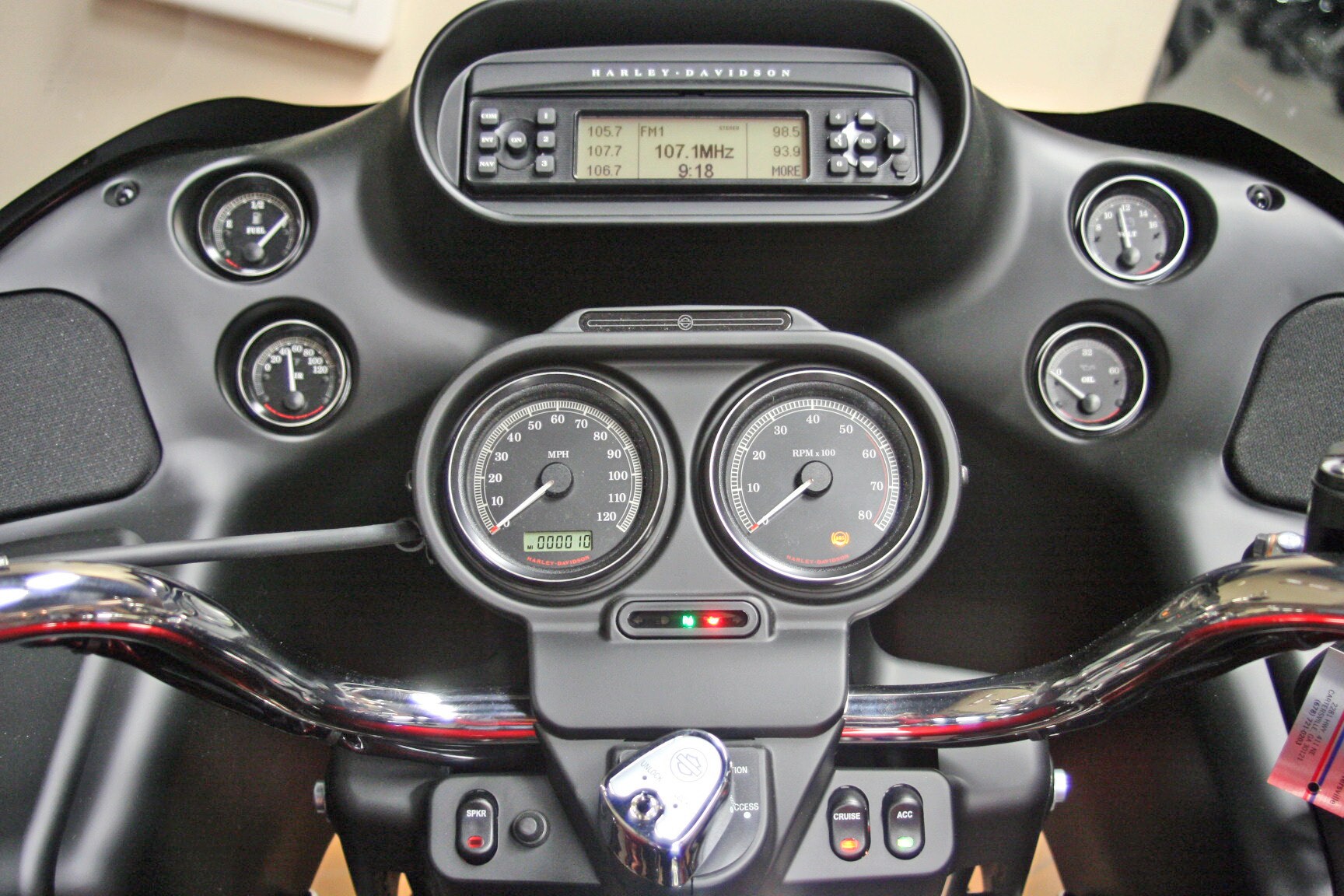

Gauges: Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
